Experiment: Measurement of 2- and 3- Nucleon Short Range Correlation Probabilities in Nuclei, 2002
Spokespersons: K. Sh.Egiyan
Experiment comment: Using the measured onsets of 2- and 3-nucleon SRC, combined with the well known wave functions of deuterium and 3He, the absolute probabilities of these correlations were extracted, too.
Publications:
Quantity measured: R(56Fe/3He), dimensionless
The ratio for measured 56-Fe cross-section over similar cross-section of 3-He.
Beam: e, polarization: none
Target: Fe56 (Z=26, A=56), polarization: none
Final state: inclusive, polarization: none
| Q2 : | 1.4 — 2.6 GeV2 |
|---|---|
| xb : | 0.85 — 3 |
|

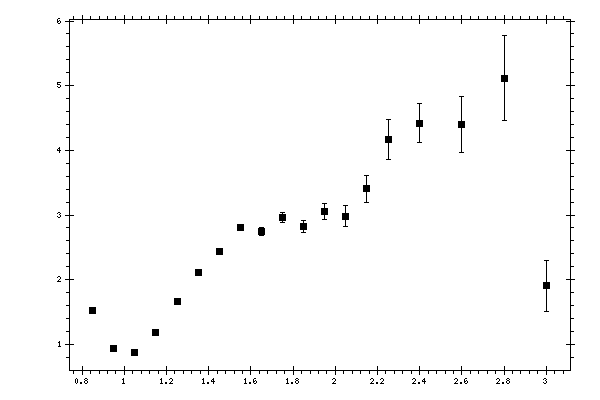

Observable quantity measured (Y axis): R(56Fe/3He), dimensionless
Parameter (X axis): x, dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
x,
dimensionless |
R(56Fe/3He),
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 0.85 | 1.527249 | 0.0039412 |
| 0.95 | 0.939337 | 0.0028089 |
| 1.05 | 0.866943 | 0.0031398 |
| 1.15 | 1.182635 | 0.0057473 |
| 1.25 | 1.669622 | 0.01121 |
| 1.35 | 2.1151 | 0.019888 |
| 1.45 | 2.437761 | 0.031399 |
| 1.55 | 2.800803 | 0.047591 |
| 1.65 | 2.742267 | 0.060489 |
| 1.75 | 2.965331 | 0.081154 |
| 1.85 | 2.820742 | 0.098301 |
| 1.95 | 3.05849 | 0.12634 |
| 2.05 | 2.984465 | 0.16538 |
| 2.15 | 3.403786 | 0.21037 |
| 2.25 | 4.166235 | 0.30836 |
| 2.4 | 4.41829 | 0.30158 |
| 2.6 | 4.397588 | 0.42848 |
| 2.8 | 5.113257 | 0.65723 |
| 3 | 1.90692 | 0.39643 |
