Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.45 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 460 MeV |
|

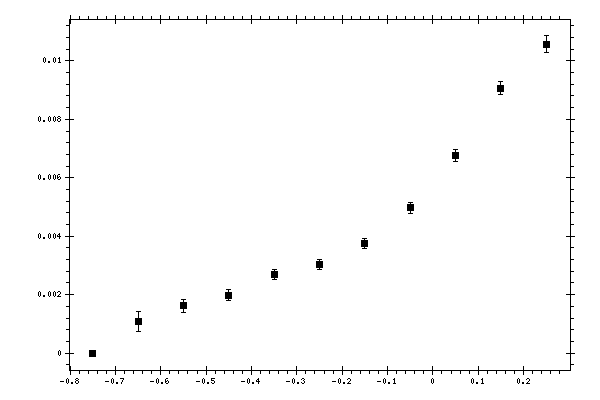

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0 | 0 | 0.000968381 |
| -0.65 | 0.00108622 | 0.00034704 | 0.000419927 |
| -0.55 | 0.00162872 | 0.000222586 | 0.000248791 |
| -0.45 | 0.00198808 | 0.000179227 | 0.000277089 |
| -0.35 | 0.0027055 | 0.000172511 | 0.000370117 |
| -0.25 | 0.00304768 | 0.000173117 | 0.000440485 |
| -0.15 | 0.00375867 | 0.000173342 | 0.000699809 |
| -0.05 | 0.00497614 | 0.000184049 | 0.00086749 |
| 0.05 | 0.0067477 | 0.000206954 | 0.000903469 |
| 0.15 | 0.00906185 | 0.000222475 | 0.00110062 |
| 0.25 | 0.0105644 | 0.000292346 | 0.00131863 |
