Measurement E90M105

You are not logged in.

Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002

Spokespersons: Sebastian Kuhn

Publication:

A. V. Klimenko, S. E. Kuhn, and CLAS Collaboration Electron Scattering From High-Momentum Neutrons in Deuterium // Phys. Rev. C 73, 035212 (2006) arXiv:nucl-ex/0510032

Quantity measured: F₂ * P(P_s), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none

Q² :	0.18 GeV²
W :	2.4 GeV
P_s:	560 MeV

Observable quantity measured (Y axis): F₂ * P(P_s), dimensionless

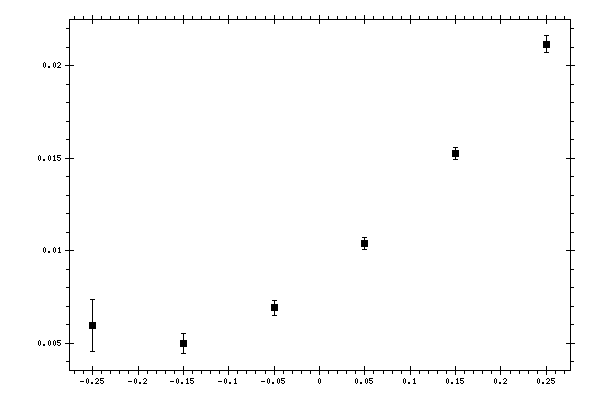

Plot measurement data

Parameter (X axis): cos(θ_pq), dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θ_pq), dimensionless	F₂ * P(P_s), dimensionless	Data errors, dimensionless	Systematic errors, dimensionless
-0.25	0.00594581	0.00140144	0.00319928
-0.15	0.00500706	0.000536601	0.00121507
-0.05	0.00691267	0.000384691	0.00133542
0.05	0.0103846	0.000334043	0.00243139
0.15	0.0152327	0.000328561	0.00417578
0.25	0.0211631	0.000440537	0.0072929
