Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.25 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 560 MeV |
|

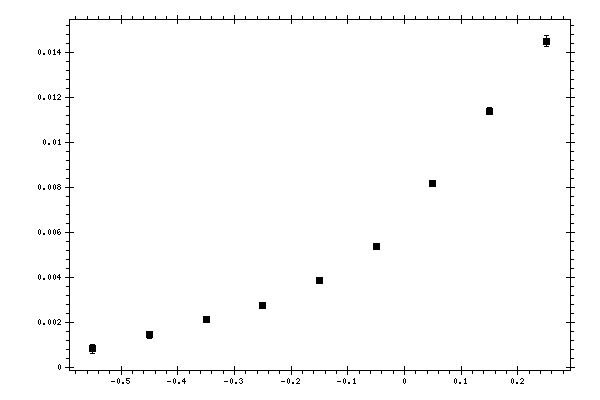

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Stat. error,
dimensionless |
Syst. error,
dimensionless |
|---|---|---|---|
| -0.55 | 0.000833002 | 0.000197622 | 0.000132058 |
| -0.45 | 0.00145165 | 0.000153092 | 0.000397563 |
| -0.35 | 0.00214529 | 0.000131566 | 0.000594607 |
| -0.25 | 0.00273165 | 0.000124484 | 0.000484121 |
| -0.15 | 0.00386164 | 0.00011591 | 0.000514444 |
| -0.05 | 0.00539093 | 0.000122385 | 0.000682452 |
| 0.05 | 0.00817638 | 0.00013786 | 0.00119755 |
| 0.15 | 0.0113948 | 0.000156731 | 0.00180659 |
| 0.25 | 0.0145078 | 0.000229898 | 0.00241423 |
