Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.55 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 560 MeV |
|

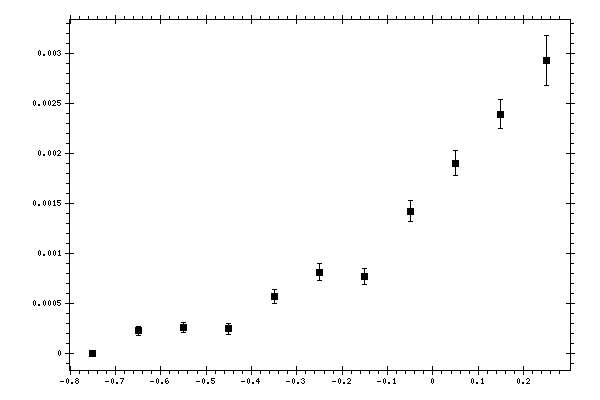

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0 | 0 | 9.67005e-05 |
| -0.65 | 0.000223428 | 4.71946e-05 | 2.88539e-05 |
| -0.55 | 0.000258843 | 5.15662e-05 | 4.49177e-05 |
| -0.45 | 0.000243673 | 5.43256e-05 | 7.49496e-05 |
| -0.35 | 0.000565864 | 7.09699e-05 | 0.000147593 |
| -0.25 | 0.000807939 | 8.41695e-05 | 0.000189401 |
| -0.15 | 0.000767004 | 7.56244e-05 | 0.000295553 |
| -0.05 | 0.00142156 | 0.000105195 | 0.000246804 |
| 0.05 | 0.00189997 | 0.000123259 | 0.000464236 |
| 0.15 | 0.0023897 | 0.00014481 | 0.000784644 |
| 0.25 | 0.00292766 | 0.000246381 | 0.00100792 |
