Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 2.8 GeV2 |
|---|---|
| W : | 2.02 GeV |
| Ps: | 300 MeV |
|

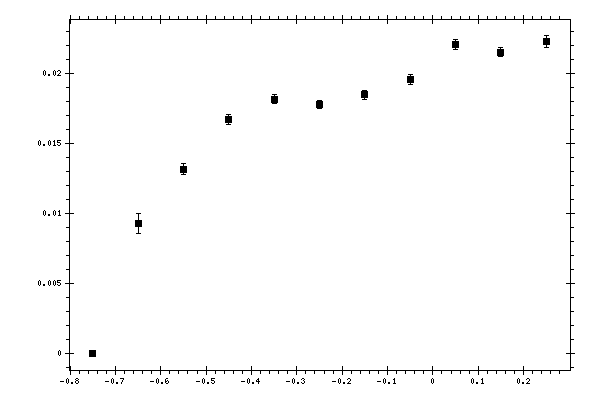

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Stat. error,
dimensionless |
Syst. error,
dimensionless |
|---|---|---|---|
| -0.75 | 0 | 0 | 0.00197409 |
| -0.65 | 0.00926358 | 0.000711627 | 0.00149763 |
| -0.55 | 0.0131456 | 0.000397654 | 0.00176189 |
| -0.45 | 0.0166969 | 0.000343157 | 0.00227364 |
| -0.35 | 0.0181714 | 0.000307859 | 0.00239207 |
| -0.25 | 0.0177909 | 0.000299259 | 0.00233892 |
| -0.15 | 0.0184773 | 0.000323929 | 0.00246715 |
| -0.05 | 0.019589 | 0.000344444 | 0.0026993 |
| 0.05 | 0.0220514 | 0.000350968 | 0.00305721 |
| 0.15 | 0.0215236 | 0.00032371 | 0.00278878 |
| 0.25 | 0.0222809 | 0.000405679 | 0.00344349 |
