Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.65 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 560 MeV |
|

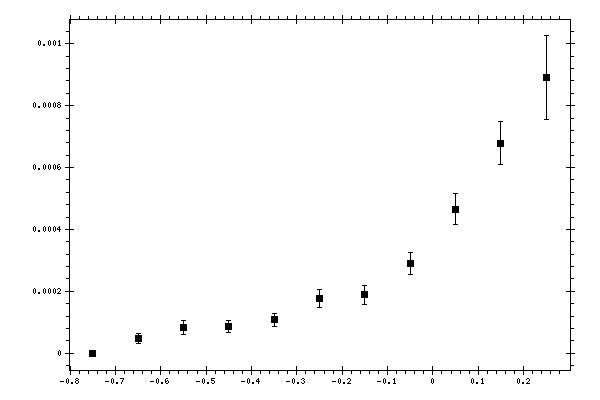

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0 | 0 | 2.70492e-05 |
| -0.65 | 4.66229e-05 | 1.57287e-05 | 2.74814e-05 |
| -0.55 | 8.28689e-05 | 2.25697e-05 | 2.4715e-05 |
| -0.45 | 8.5323e-05 | 1.86384e-05 | 5.90061e-05 |
| -0.35 | 0.000107206 | 2.17238e-05 | 0.000101304 |
| -0.25 | 0.000176848 | 2.82436e-05 | 0.000148405 |
| -0.15 | 0.00018873 | 3.01278e-05 | 0.000263009 |
| -0.05 | 0.000290142 | 3.55861e-05 | 0.000365076 |
| 0.05 | 0.000465405 | 5.02494e-05 | 0.000486036 |
| 0.15 | 0.000679142 | 7.03691e-05 | 0.000439931 |
| 0.25 | 0.000890411 | 0.000135071 | 0.000532048 |
