Measurement E90M125

You are not logged in.

Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002

Spokespersons: Sebastian Kuhn

Publication:

A. V. Klimenko, S. E. Kuhn, and CLAS Collaboration Electron Scattering From High-Momentum Neutrons in Deuterium // Phys. Rev. C 73, 035212 (2006) arXiv:nucl-ex/0510032

Quantity measured: F₂(x^*,Q²), dimensionless
Structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none

Q² :	2.8 GeV²
W :	2.4 GeV
P_s:	560 MeV

Observable quantity measured (Y axis): F₂(x^*,Q²), dimensionless

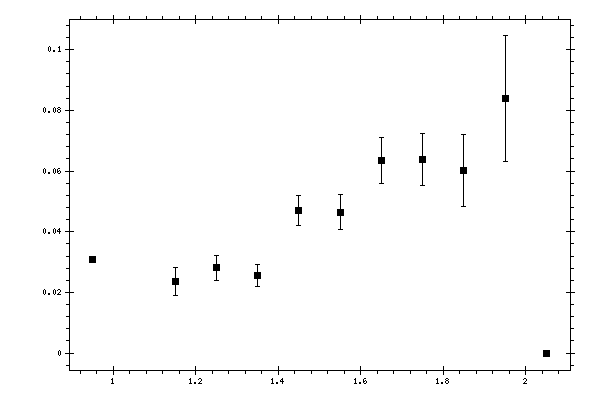

Plot measurement data

Parameter (X axis): W^*, GeV

Click here to get data in text file, delimited with tabs.

Measured data:

W^*, GeV	F₂(x^*,Q²), dimensionless	Data errors, dimensionless	Systematic errors, dimensionless
0.95	0.0307207	0.000273355	0.00469383
1.15	0.0236552	0.00469397	0.016705
1.25	0.0281199	0.00420968	0.00528592
1.35	0.0255605	0.00373967	0.00431276
1.45	0.04697	0.00502355	0.0088947
1.55	0.0464915	0.00576885	0.00680232
1.65	0.0634844	0.00764379	0.0136082
1.75	0.0638482	0.00860798	0.0131662
1.85	0.0600323	0.0118581	0.024347
1.95	0.08389	0.0206616	0.0173249
2.05	0	0	0.070702
