Measurement E90M127

You are not logged in.

Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002

Spokespersons: Sebastian Kuhn

Publication:

A. V. Klimenko, S. E. Kuhn, and CLAS Collaboration Electron Scattering From High-Momentum Neutrons in Deuterium // Phys. Rev. C 73, 035212 (2006) arXiv:nucl-ex/0510032

Quantity measured: F₂(x^*,Q²), dimensionless
Structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none

Q² :	1.8 GeV²
W :	2.4 GeV
P_s:	300 MeV

Observable quantity measured (Y axis): F₂(x^*,Q²), dimensionless

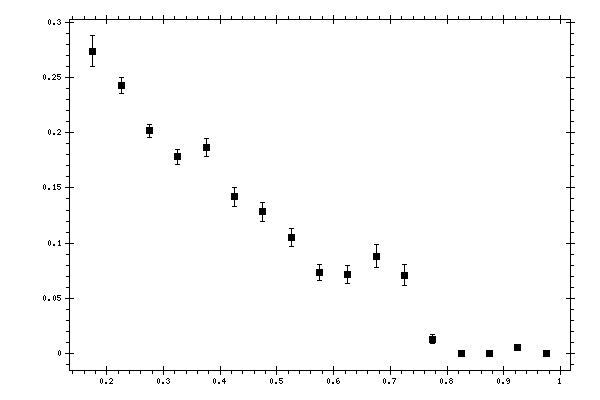

Plot measurement data

Parameter (X axis): x^*, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x^*, dimensionless	F₂(x^*,Q²), dimensionless	Stat. error, dimensionless	Syst. error, dimensionless
0.175	0.274209	0.0139528	0
0.225	0.242746	0.00737727	0
0.275	0.201963	0.00600322	0
0.325	0.178365	0.00675044	0
0.375	0.186521	0.00828876	0
0.425	0.141953	0.00838744	0
0.475	0.128261	0.00861761	23.197
0.525	0.105326	0.0083069	0
0.575	0.0729724	0.00733487	15.14
0.625	0.0712515	0.00806816	35.3706
0.675	0.0878844	0.0105557	26.7227
0.725	0.0707852	0.00951089	18.4577
0.775	0.0128181	0.00380679	32.5541
0.825	0	0	44.4415
0.875	0	0	44.3878
0.925	0.00516659	0.00075534	38.4454
0.975	0	0	57.4413
