Measurement E90M128

You are not logged in.

Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002

Spokespersons: Sebastian Kuhn

Publication:

A. V. Klimenko, S. E. Kuhn, and CLAS Collaboration Electron Scattering From High-Momentum Neutrons in Deuterium // Phys. Rev. C 73, 035212 (2006) arXiv:nucl-ex/0510032

Quantity measured: F₂(x^*,Q²), dimensionless
Structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none

Q² :	1.8 GeV²
W :	2.4 GeV
P_s:	340 MeV

Observable quantity measured (Y axis): F₂(x^*,Q²), dimensionless

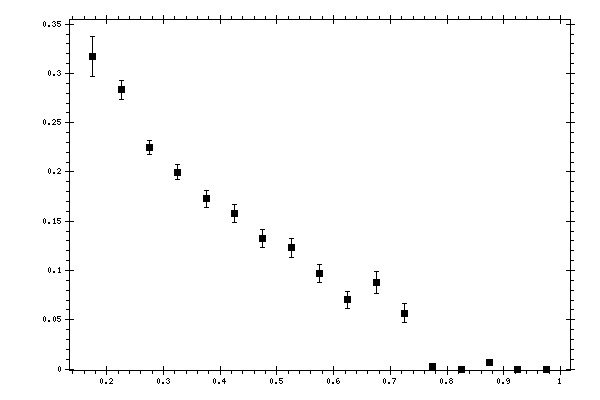

Plot measurement data

Parameter (X axis): x^*, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x^*, dimensionless	F₂(x^*,Q²), dimensionless	Data errors, dimensionless	Systematic errors, dimensionless
0.175	0.317112	0.0202761	0
0.225	0.283302	0.00955018	0
0.275	0.22458	0.00726951	0
0.325	0.19995	0.00758498	0
0.375	0.172629	0.008914	0
0.425	0.157409	0.00918832	0
0.475	0.132802	0.00913204	22.2979
0.525	0.122839	0.0100885	0
0.575	0.0973108	0.00925289	31.0216
0.625	0.070208	0.00892297	27.3494
0.675	0.0876227	0.0110766	24.6934
0.725	0.056486	0.00959143	32.8786
0.775	0.00275134	0.000720391	33.5763
0.825	0	0	39.2423
0.875	0.00614672	0.000879986	25.3599
0.925	0	0	26.829
0.975	0	0	34.2246
