Measurement E90M129

You are not logged in.

Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002

Spokespersons: Sebastian Kuhn

Publication:

A. V. Klimenko, S. E. Kuhn, and CLAS Collaboration Electron Scattering From High-Momentum Neutrons in Deuterium // Phys. Rev. C 73, 035212 (2006) arXiv:nucl-ex/0510032

Quantity measured: F₂(x^*,Q²), dimensionless
Structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none

Q² :	1.8 GeV²
W :	2.4 GeV
P_s:	390 MeV

Observable quantity measured (Y axis): F₂(x^*,Q²), dimensionless

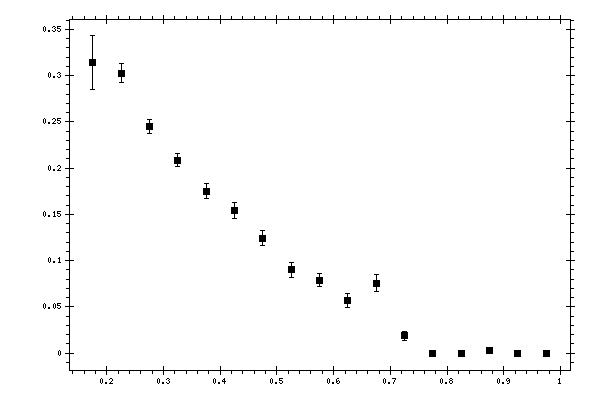

Plot measurement data

Parameter (X axis): x^*, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x^*, dimensionless	F₂(x^*,Q²), dimensionless	Stat. error, dimensionless	Syst. error, dimensionless
0.175	0.314006	0.0289302	0
0.225	0.302715	0.0101981	0
0.275	0.244778	0.00754627	0
0.325	0.208563	0.00677923	0
0.375	0.175165	0.00765746	0
0.425	0.154259	0.00869185	0
0.475	0.124368	0.00835285	99.5757
0.525	0.0902026	0.00791768	0
0.575	0.0790188	0.0073816	23.5747
0.625	0.0572246	0.00755238	14.9311
0.675	0.0755055	0.00935615	22.8554
0.725	0.0188085	0.00505156	21.7576
0.775	0	0	29.7958
0.825	0	0	37.1111
0.875	0.00263953	0.000562247	61.8238
0.925	0	0	45.9638
0.975	0	0	63.4435
