Measurement E90M133

You are not logged in.

Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002

Spokespersons: Sebastian Kuhn

Publication:

A. V. Klimenko, S. E. Kuhn, and CLAS Collaboration Electron Scattering From High-Momentum Neutrons in Deuterium // Phys. Rev. C 73, 035212 (2006) arXiv:nucl-ex/0510032

Quantity measured: F₂(x^*,Q²), dimensionless
Structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none

Q² :	2.8 GeV²
W :	2.4 GeV
P_s:	300 MeV

Observable quantity measured (Y axis): F₂(x^*,Q²), dimensionless

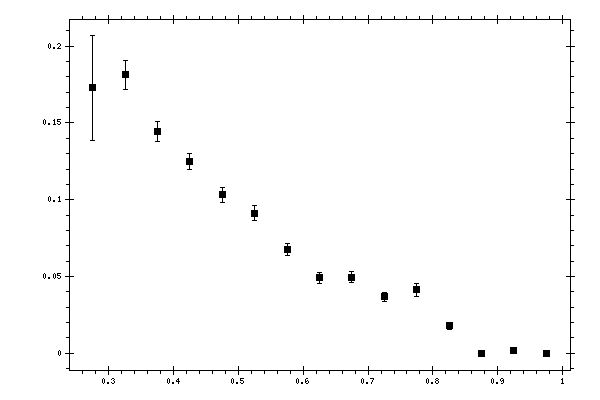

Plot measurement data

Parameter (X axis): x^*, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x^*, dimensionless	F₂(x^*,Q²), dimensionless	Data errors, dimensionless	Systematic errors, dimensionless
0.275	0.172822	0.0339587	0
0.325	0.181408	0.00961684	0
0.375	0.144747	0.00649301	0
0.425	0.124942	0.00532855	0
0.475	0.103123	0.00514354	36.659
0.525	0.0911366	0.00501394	0
0.575	0.067701	0.00407714	37.2556
0.625	0.0492162	0.00359788	56.83
0.675	0.0495131	0.00363726	23.4849
0.725	0.0366601	0.0031252	37.0504
0.775	0.0413233	0.00432275	29.9378
0.825	0.0177634	0.00229128	34.1233
0.875	0	0	39.6481
0.925	0.00161189	0.000201698	45.4245
0.975	0	0	53.7725
