Measurement E90M135

You are not logged in.

Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002

Spokespersons: Sebastian Kuhn

Publication:

A. V. Klimenko, S. E. Kuhn, and CLAS Collaboration Electron Scattering From High-Momentum Neutrons in Deuterium // Phys. Rev. C 73, 035212 (2006) arXiv:nucl-ex/0510032

Quantity measured: F₂(x^*,Q²), dimensionless
Structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none

Q² :	2.8 GeV²
W :	2.4 GeV
P_s:	390 MeV

Observable quantity measured (Y axis): F₂(x^*,Q²), dimensionless

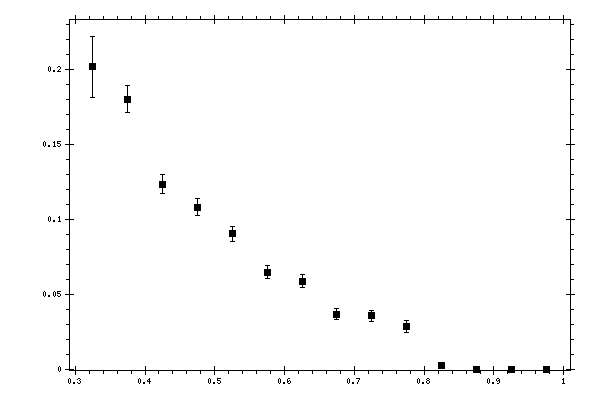

Plot measurement data

Parameter (X axis): x^*, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x^*, dimensionless	F₂(x^*,Q²), dimensionless	Data errors, dimensionless	Systematic errors, dimensionless
0.325	0.201807	0.0202066	0
0.375	0.180124	0.00911047	0
0.425	0.123422	0.00630264	0
0.475	0.108102	0.00571505	38.9802
0.525	0.0902356	0.00527719	0
0.575	0.0645998	0.00431867	31.7606
0.625	0.0584658	0.00434682	18.1841
0.675	0.0365878	0.00352514	25.6992
0.725	0.0355057	0.0034775	22.9172
0.775	0.0285532	0.00397339	27.1951
0.825	0.00207521	0.000316665	31.8528
0.875	0	0	42.393
0.925	0	0	44.8643
0.975	0	0	45.7299
