Measurement E90M137

You are not logged in.

Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002

Spokespersons: Sebastian Kuhn

Publication:

A. V. Klimenko, S. E. Kuhn, and CLAS Collaboration Electron Scattering From High-Momentum Neutrons in Deuterium // Phys. Rev. C 73, 035212 (2006) arXiv:nucl-ex/0510032

Quantity measured: F₂(x^*,Q²), dimensionless
Structure function.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none

Q² :	2.8 GeV²
W :	2.4 GeV
P_s:	560 MeV

Observable quantity measured (Y axis): F₂(x^*,Q²), dimensionless

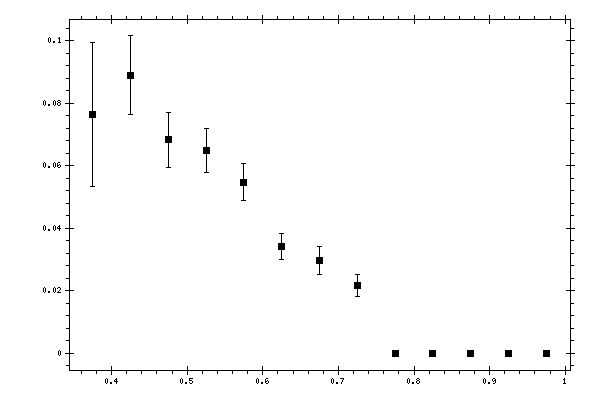

Plot measurement data

Parameter (X axis): x^*, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x^*, dimensionless	F₂(x^*,Q²), dimensionless	Stat. error, dimensionless	Syst. error, dimensionless
0.375	0.0765244	0.023073	0
0.425	0.0889896	0.0126185	0
0.475	0.068354	0.00879747	27.0699
0.525	0.0648449	0.00702819	0
0.575	0.05477	0.00580356	28.8223
0.625	0.0341587	0.00421033	10.0136
0.675	0.0297415	0.00440583	9.30011
0.725	0.0217515	0.00348841	17.1434
0.775	0	0	10.8172
0.825	0	0	19.034
0.875	0	0	12.3046
0.925	0	0	13.2864
0.975	0	0	3.88255
