Parameter (X axis): αs, dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Pt), dimensionless
Structure function times light-cone momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 1.8 GeV2 |
|---|---|
| W : | 2.02 GeV |
| PT: | 400 MeV |
|

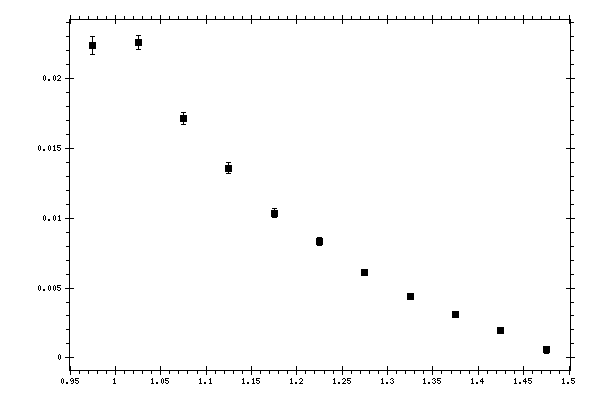

Observable quantity measured (Y axis): F2 * P(Pt), dimensionless
Parameter (X axis): αs, dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
αs,
dimensionless |
F2 * P(Pt),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| 0.975 | 0.0223622 | 0.000653222 | 0.00288279 |
| 1.025 | 0.0225565 | 0.000476119 | 0.00282288 |
| 1.075 | 0.0171298 | 0.000445585 | 0.002362 |
| 1.125 | 0.0135639 | 0.000402616 | 0.00195162 |
| 1.175 | 0.0103505 | 0.000338455 | 0.00150842 |
| 1.225 | 0.00834167 | 0.000281263 | 0.00104134 |
| 1.275 | 0.00612871 | 0.00021938 | 0.000781101 |
| 1.325 | 0.00440693 | 0.000186025 | 0.000582083 |
| 1.375 | 0.00310822 | 0.000187179 | 0.000419355 |
| 1.425 | 0.00199521 | 0.000209219 | 0.000317698 |
| 1.475 | 0.000577345 | 0.000233181 | 0.00100117 |
