Parameter (X axis): αs, dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Pt), dimensionless
Structure function times light-cone momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 1.8 GeV2 |
|---|---|
| W : | 1.5 GeV |
| PT: | 500 MeV |
|

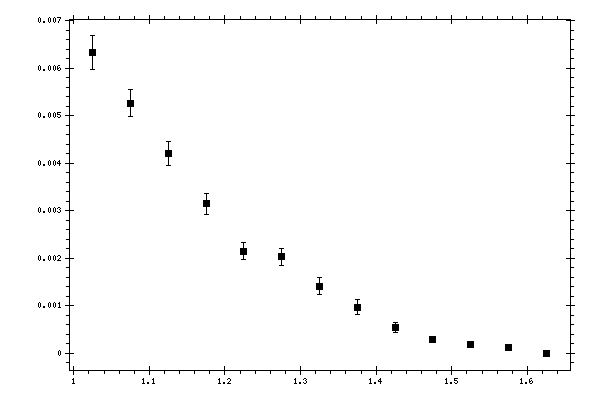

Observable quantity measured (Y axis): F2 * P(Pt), dimensionless
Parameter (X axis): αs, dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
αs,
dimensionless |
F2 * P(Pt),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| 1.025 | 0.00632841 | 0.000349566 | 0.00115383 |
| 1.075 | 0.00526348 | 0.000279782 | 0.000940624 |
| 1.125 | 0.00420115 | 0.00024563 | 0.000643128 |
| 1.175 | 0.00314167 | 0.000223199 | 0.000593784 |
| 1.225 | 0.00214839 | 0.000172993 | 0.000458178 |
| 1.275 | 0.0020239 | 0.000184853 | 0.000379104 |
| 1.325 | 0.00141208 | 0.000169815 | 0.000284994 |
| 1.375 | 0.00096935 | 0.000157573 | 0.000198071 |
| 1.425 | 0.000543156 | 0.000101334 | 8.3676e-05 |
| 1.475 | 0.000281681 | 6.63097e-05 | 0.000126574 |
| 1.525 | 0.000179028 | 4.59859e-05 | 9.57424e-05 |
| 1.575 | 0.000110734 | 4.05645e-05 | 5.79019e-05 |
| 1.625 | 0 | 0 | 2.88142e-05 |
