Parameter (X axis): αs, dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Pt), dimensionless
Structure function times light-cone momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 1.8 GeV2 |
|---|---|
| W : | 1.73 GeV |
| PT: | 500 MeV |
|

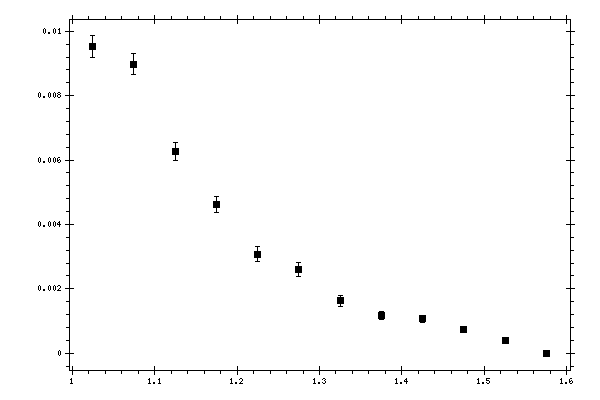

Observable quantity measured (Y axis): F2 * P(Pt), dimensionless
Parameter (X axis): αs, dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
αs,
dimensionless |
F2 * P(Pt),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| 1.025 | 0.00951488 | 0.000343241 | 0.00217184 |
| 1.075 | 0.00897938 | 0.000325694 | 0.00119996 |
| 1.125 | 0.00626359 | 0.000281062 | 0.00125289 |
| 1.175 | 0.00461726 | 0.000259674 | 0.000997149 |
| 1.225 | 0.00307056 | 0.000230548 | 0.000946656 |
| 1.275 | 0.00260088 | 0.00021672 | 0.000367073 |
| 1.325 | 0.00162017 | 0.000165231 | 0.000370559 |
| 1.375 | 0.00117728 | 0.000125189 | 0.00022243 |
| 1.425 | 0.00106127 | 0.000107838 | 0.000188092 |
| 1.475 | 0.000729618 | 9.18574e-05 | 0.000128872 |
| 1.525 | 0.0003887 | 8.85004e-05 | 6.63524e-05 |
| 1.575 | 0 | 0 | 6.24213e-05 |
