Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Pt), dimensionless
Structure function times light-cone momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 2.8 GeV2 |
|---|---|
| W : | 1.25 GeV |
| PT: | 500 MeV |
|

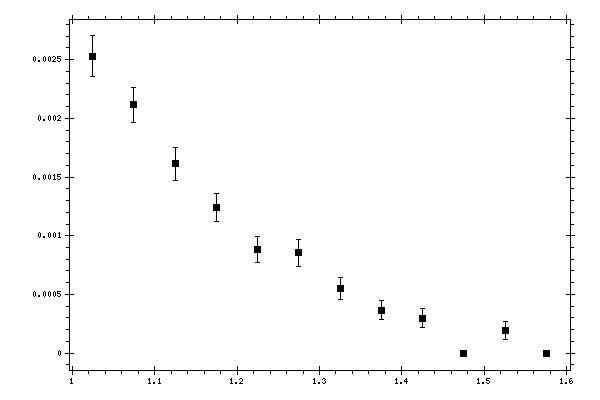

Observable quantity measured (Y axis): F2 * P(Pt), dimensionless
Parameter (X axis): αs, dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
αs,
dimensionless |
F2 * P(Pt),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| 1.025 | 0.00253061 | 0.000172076 | 0.000800729 |
| 1.075 | 0.00211549 | 0.000151125 | 0.000622898 |
| 1.125 | 0.00161256 | 0.000138817 | 0.000523468 |
| 1.175 | 0.00124001 | 0.000119804 | 0.000331145 |
| 1.225 | 0.000882854 | 0.000113898 | 0.000271158 |
| 1.275 | 0.000854824 | 0.00011277 | 0.000167808 |
| 1.325 | 0.000550207 | 9.45958e-05 | 9.52187e-05 |
| 1.375 | 0.000365087 | 8.10387e-05 | 7.3704e-05 |
| 1.425 | 0.000296846 | 7.95928e-05 | 6.71641e-05 |
| 1.475 | 0 | 0 | 9.82274e-05 |
| 1.525 | 0.000193404 | 7.77224e-05 | 6.19291e-05 |
| 1.575 | 0 | 0 | 3.61999e-05 |
