Parameter (X axis): αs, dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Pt), dimensionless
Structure function times light-cone momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 2.8 GeV2 |
|---|---|
| W : | 1.25 GeV |
| PT: | 600 MeV |
|
Observable quantity measured (Y axis): F2 * P(Pt), dimensionless
Parameter (X axis): αs, dimensionless |
Click here to get data in text file, delimited with tabs.

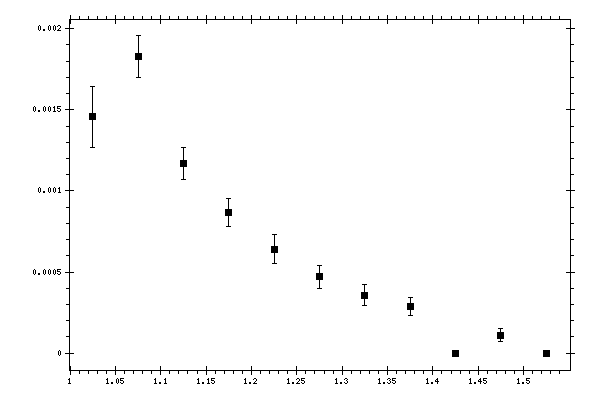

Measured data:
|
αs,
dimensionless |
F2 * P(Pt),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| 1.025 | 0.0014585 | 0.000188123 | 0.000631846 |
| 1.075 | 0.00182913 | 0.000126982 | 0.000303065 |
| 1.125 | 0.00116745 | 9.88255e-05 | 0.000394449 |
| 1.175 | 0.000865565 | 8.6389e-05 | 0.000434195 |
| 1.225 | 0.000641188 | 8.74567e-05 | 0.000316918 |
| 1.275 | 0.00047161 | 7.11677e-05 | 0.000193378 |
| 1.325 | 0.000357222 | 6.42809e-05 | 0.000111547 |
| 1.375 | 0.000289038 | 5.5325e-05 | 4.91975e-05 |
| 1.425 | 0 | 0 | 0.000157856 |
| 1.475 | 0.000111816 | 3.9533e-05 | 2.36838e-05 |
| 1.525 | 0 | 0 | 6.71165e-05 |
