Measurement E90M194

You are not logged in.

Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002

Spokespersons: Sebastian Kuhn

Publication:

A. V. Klimenko, S. E. Kuhn, and CLAS Collaboration Electron Scattering From High-Momentum Neutrons in Deuterium // Phys. Rev. C 73, 035212 (2006) arXiv:nucl-ex/0510032

Quantity measured: F₂ * P(P_t), dimensionless
Structure function times light-cone momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none

Q² :	2.8 GeV²
W :	1.5 GeV
P_T:	600 MeV

Observable quantity measured (Y axis): F₂ * P(P_t), dimensionless

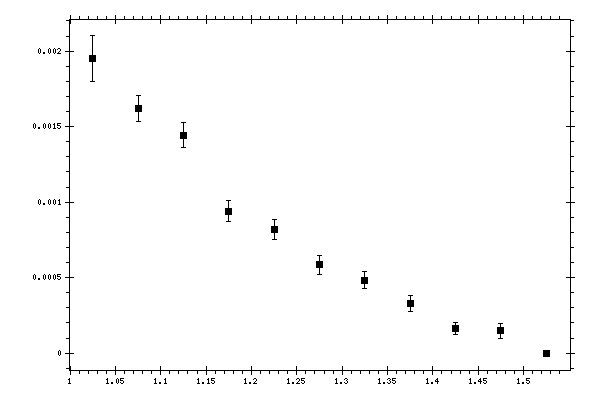

Plot measurement data

Parameter (X axis): α_s, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

α_s, dimensionless	F₂ * P(P_t), dimensionless	Data errors, dimensionless	Systematic errors, dimensionless
1.025	0.00194902	0.000152317	0.000587939
1.075	0.00162148	8.56961e-05	0.000673198
1.125	0.00144465	8.28954e-05	0.000441598
1.175	0.000940985	7.07695e-05	0.000512415
1.225	0.000819464	6.61228e-05	0.000263289
1.275	0.000585492	6.27112e-05	0.000198796
1.325	0.000481157	5.62938e-05	0.00010632
1.375	0.000328313	5.43779e-05	5.78437e-05
1.425	0.000166344	3.98126e-05	8.23596e-05
1.475	0.000148443	4.9481e-05	1.94677e-05
1.525	0	0	7.1261e-05
