Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 1.8 GeV2 |
|---|---|
| W : | 1.25 GeV |
| Ps: | 300 MeV |
|
Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.

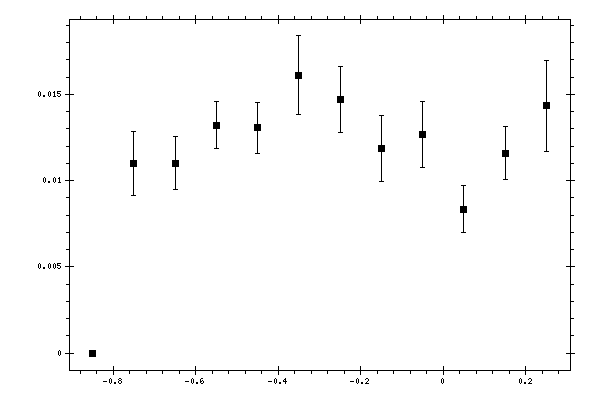

Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.85 | 0 | 0 | 0.00161998 |
| -0.75 | 0.0109742 | 0.00185791 | 0.00191666 |
| -0.65 | 0.0110137 | 0.00151411 | 0.00207149 |
| -0.55 | 0.0132195 | 0.00137696 | 0.00240041 |
| -0.45 | 0.0130505 | 0.00148013 | 0.00221492 |
| -0.35 | 0.0160952 | 0.00229022 | 0.00297776 |
| -0.25 | 0.0147238 | 0.00191424 | 0.0025236 |
| -0.15 | 0.0118722 | 0.0019118 | 0.00275265 |
| -0.05 | 0.0126531 | 0.00190598 | 0.00248 |
| 0.05 | 0.00834299 | 0.00136395 | 0.0017804 |
| 0.15 | 0.0115954 | 0.00156024 | 0.00229979 |
| 0.25 | 0.0143472 | 0.00263951 | 0.0029669 |
