Parameter (X axis): αs, dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Pt), dimensionless
Structure function times light-cone momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.55 GeV2 |
|---|---|
| W : | 2.4 GeV |
| PT: | 400 MeV |
|

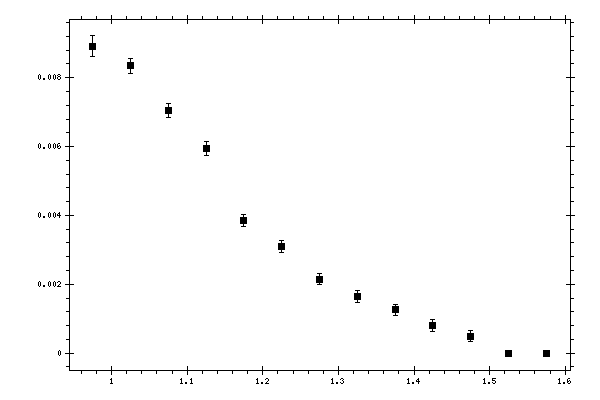

Observable quantity measured (Y axis): F2 * P(Pt), dimensionless
Parameter (X axis): αs, dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
αs,
dimensionless |
F2 * P(Pt),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| 0.975 | 0.00890991 | 0.000305295 | 0.00156027 |
| 1.025 | 0.00834518 | 0.000209678 | 0.00148187 |
| 1.075 | 0.00704523 | 0.000213509 | 0.00128212 |
| 1.125 | 0.00594633 | 0.000209021 | 0.00106388 |
| 1.175 | 0.00385952 | 0.000176981 | 0.000698152 |
| 1.225 | 0.00309093 | 0.000175569 | 0.00056664 |
| 1.275 | 0.00215212 | 0.000160479 | 0.000402915 |
| 1.325 | 0.00165031 | 0.000171669 | 0.000324458 |
| 1.375 | 0.00125421 | 0.000162905 | 0.000226384 |
| 1.425 | 0.000803244 | 0.00016848 | 0.000152542 |
| 1.475 | 0.000495932 | 0.000157436 | 0.000104148 |
| 1.525 | 0 | 0 | 5.9153e-05 |
| 1.575 | 0 | 0 | 1.97503e-05 |
