Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Pt), dimensionless
Structure function times light-cone momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.35 GeV2 |
|---|---|
| W : | 2.4 GeV |
| PT: | 500 MeV |
|

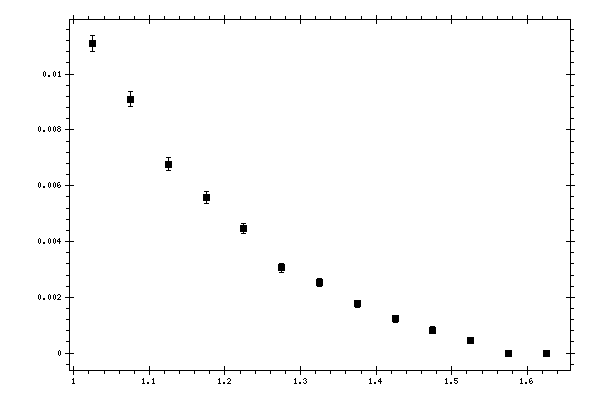

Observable quantity measured (Y axis): F2 * P(Pt), dimensionless
Parameter (X axis): αs, dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
αs,
dimensionless |
F2 * P(Pt),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| 1.025 | 0.0110859 | 0.000283672 | 0.00189672 |
| 1.075 | 0.00910212 | 0.000261446 | 0.00156135 |
| 1.125 | 0.00677688 | 0.000236435 | 0.00117192 |
| 1.175 | 0.00557201 | 0.000209217 | 0.000946464 |
| 1.225 | 0.00447463 | 0.000184328 | 0.000750703 |
| 1.275 | 0.00305612 | 0.000160757 | 0.000525129 |
| 1.325 | 0.00251809 | 0.000146129 | 0.000438642 |
| 1.375 | 0.00176596 | 0.000132449 | 0.000313484 |
| 1.425 | 0.00123884 | 0.000125866 | 0.000214732 |
| 1.475 | 0.000827326 | 0.000116193 | 0.00014171 |
| 1.525 | 0.000457308 | 0.000104121 | 8.18225e-05 |
| 1.575 | 0 | 0 | 1.87449e-05 |
| 1.625 | 0 | 0 | 5.18441e-05 |
