Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 2.8 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 340 MeV |
|

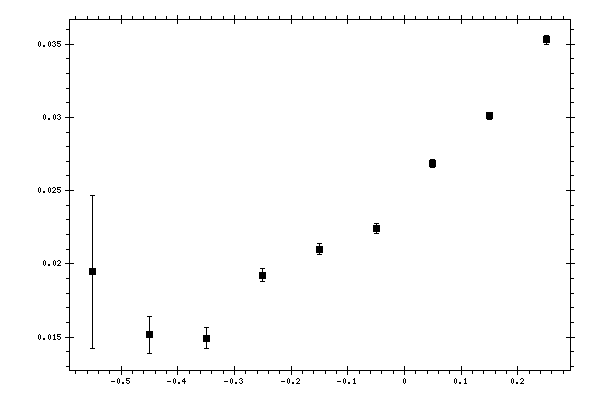

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Stat. error,
dimensionless |
Syst. error,
dimensionless |
|---|---|---|---|
| -0.55 | 0.0194529 | 0.00523786 | 0.00262 |
| -0.45 | 0.0151684 | 0.00126749 | 0.00205376 |
| -0.35 | 0.0149251 | 0.000699693 | 0.00224735 |
| -0.25 | 0.0192273 | 0.000468239 | 0.0026493 |
| -0.15 | 0.0210112 | 0.000369011 | 0.00284671 |
| -0.05 | 0.0224038 | 0.000317322 | 0.00310315 |
| 0.05 | 0.0268359 | 0.000278336 | 0.00356551 |
| 0.15 | 0.0301094 | 0.000243507 | 0.00394875 |
| 0.25 | 0.0352858 | 0.000281079 | 0.00452658 |
