Measurement E90M242

You are not logged in.

Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002

Spokespersons: Sebastian Kuhn

Publication:

A. V. Klimenko, S. E. Kuhn, and CLAS Collaboration Electron Scattering From High-Momentum Neutrons in Deuterium // Phys. Rev. C 73, 035212 (2006) arXiv:nucl-ex/0510032

Quantity measured: F₂ * P(P_t), dimensionless
Structure function times light-cone momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none

Q² :	0.25 GeV²
W :	2.4 GeV
P_T:	600 MeV

Observable quantity measured (Y axis): F₂ * P(P_t), dimensionless

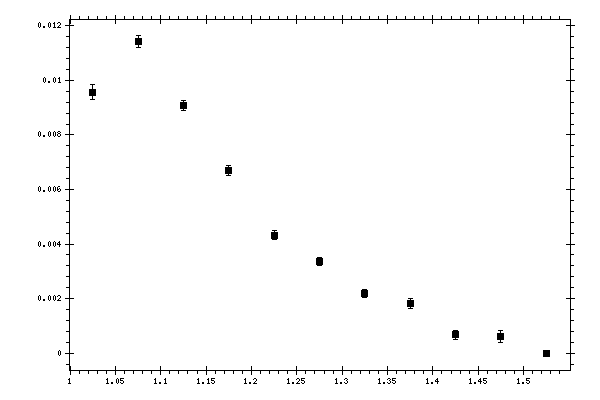

Plot measurement data

Parameter (X axis): α_s, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

α_s, dimensionless	F₂ * P(P_t), dimensionless	Data errors, dimensionless	Systematic errors, dimensionless
1.025	0.00956111	0.000273429	0.00165314
1.075	0.011417	0.000214749	0.00194055
1.125	0.0090666	0.000188038	0.00152541
1.175	0.00670346	0.000174674	0.00113892
1.225	0.00433047	0.000155163	0.000755195
1.275	0.00335395	0.000152918	0.00056842
1.325	0.00219974	0.000149792	0.000379356
1.375	0.00180956	0.000187834	0.000309518
1.425	0.000678371	0.000162007	0.000129549
1.475	0.00060268	0.000223602	0.000107615
1.525	0	0	0.000143174
