Parameter (X axis): αs, dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Pt), dimensionless
Structure function times light-cone momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.45 GeV2 |
|---|---|
| W : | 2.4 GeV |
| PT: | 600 MeV |
|

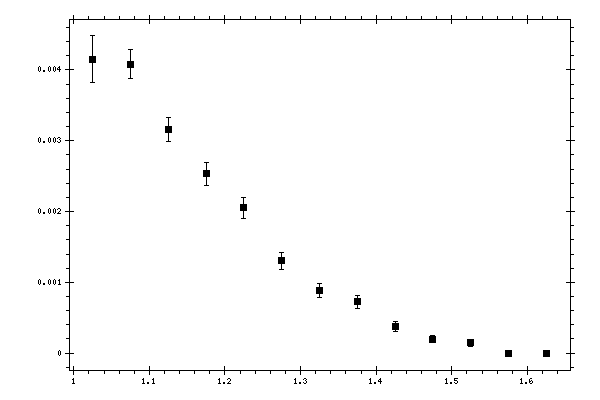

Observable quantity measured (Y axis): F2 * P(Pt), dimensionless
Parameter (X axis): αs, dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
αs,
dimensionless |
F2 * P(Pt),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| 1.025 | 0.00414866 | 0.000332742 | 0.000751395 |
| 1.075 | 0.00408169 | 0.000202736 | 0.000701052 |
| 1.125 | 0.00315423 | 0.000171636 | 0.000571193 |
| 1.175 | 0.00253163 | 0.000161483 | 0.000456738 |
| 1.225 | 0.00205229 | 0.000145195 | 0.000355544 |
| 1.275 | 0.00130777 | 0.000119675 | 0.00022796 |
| 1.325 | 0.000888123 | 0.000101148 | 0.000158191 |
| 1.375 | 0.000725695 | 9.01388e-05 | 0.000127753 |
| 1.425 | 0.00037686 | 7.121e-05 | 6.81757e-05 |
| 1.475 | 0.000199421 | 4.77107e-05 | 3.64366e-05 |
| 1.525 | 0.000143783 | 4.35419e-05 | 2.63898e-05 |
| 1.575 | 0 | 0 | 6.76355e-06 |
| 1.625 | 0 | 0 | 1.58068e-05 |
