Measurement E90M251

You are not logged in.

Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002

Spokespersons: Sebastian Kuhn

Publication:

A. V. Klimenko, S. E. Kuhn, and CLAS Collaboration Electron Scattering From High-Momentum Neutrons in Deuterium // Phys. Rev. C 73, 035212 (2006) arXiv:nucl-ex/0510032

Quantity measured: F₂ * P(P_t), dimensionless
Structure function times light-cone momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none

Q² :	0.65 GeV²
W :	2.4 GeV
P_T:	600 MeV

Observable quantity measured (Y axis): F₂ * P(P_t), dimensionless

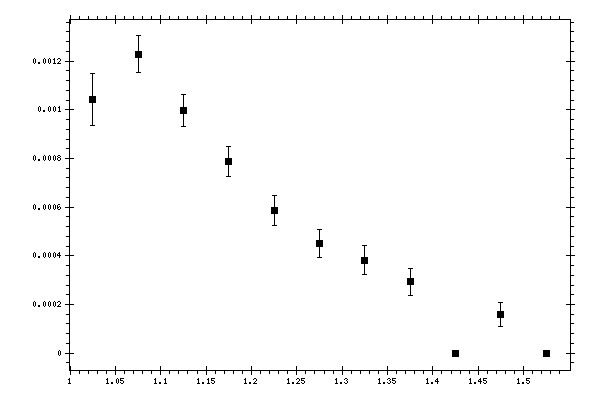

Plot measurement data

Parameter (X axis): α_s, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

α_s, dimensionless	F₂ * P(P_t), dimensionless	Data errors, dimensionless	Systematic errors, dimensionless
1.025	0.00104062	0.000106679	0.000208106
1.075	0.00122818	7.57116e-05	0.000230681
1.125	0.000996855	6.72208e-05	0.000196343
1.175	0.000787781	6.34487e-05	0.000155265
1.225	0.000586	6.14614e-05	0.000122168
1.275	0.000451976	5.75367e-05	9.14671e-05
1.325	0.000382264	5.82086e-05	7.80937e-05
1.375	0.000292356	5.40229e-05	5.6744e-05
1.425	0	0	1.90983e-05
1.475	0.000158918	5.02542e-05	3.08707e-05
1.525	0	0	1.7613e-05
