Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 1.8 GeV2 |
|---|---|
| W : | 1.73 GeV |
| Ps: | 390 MeV |
|

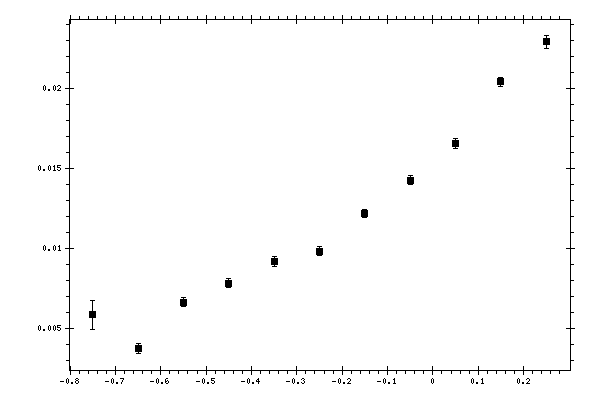

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0.00583035 | 0.000896402 | 0.000961749 |
| -0.65 | 0.00373031 | 0.00028593 | 0.000567148 |
| -0.55 | 0.00664317 | 0.000274661 | 0.00085727 |
| -0.45 | 0.00781307 | 0.000279006 | 0.000985148 |
| -0.35 | 0.0091926 | 0.000316007 | 0.00130562 |
| -0.25 | 0.00983145 | 0.000270005 | 0.00123386 |
| -0.15 | 0.0121747 | 0.000260244 | 0.00154731 |
| -0.05 | 0.014265 | 0.000294064 | 0.00184992 |
| 0.05 | 0.0165437 | 0.000309548 | 0.00215443 |
| 0.15 | 0.0204066 | 0.000283616 | 0.00266594 |
| 0.25 | 0.0229118 | 0.000380719 | 0.00306537 |
