Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 1.8 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 390 MeV |
|
Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.

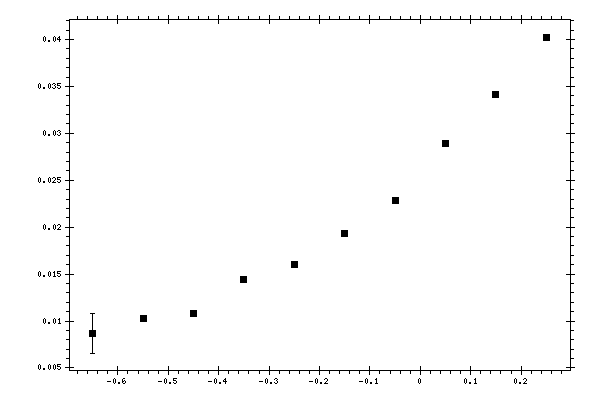

Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.65 | 0.0086851 | 0.00210536 | 0.00165069 |
| -0.55 | 0.010226 | 0.000253325 | 0.00151598 |
| -0.45 | 0.0107742 | 0.000163707 | 0.00156088 |
| -0.35 | 0.0143844 | 0.000142181 | 0.00206205 |
| -0.25 | 0.0160514 | 0.000123084 | 0.00214152 |
| -0.15 | 0.0193795 | 0.000117216 | 0.00252942 |
| -0.05 | 0.0228004 | 0.000109582 | 0.00301257 |
| 0.05 | 0.0289362 | 0.000119031 | 0.0039275 |
| 0.15 | 0.0341954 | 0.000118396 | 0.00462909 |
| 0.25 | 0.0402341 | 0.000158047 | 0.00560312 |
