Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 2.8 GeV2 |
|---|---|
| W : | 1.5 GeV |
| Ps: | 390 MeV |
|

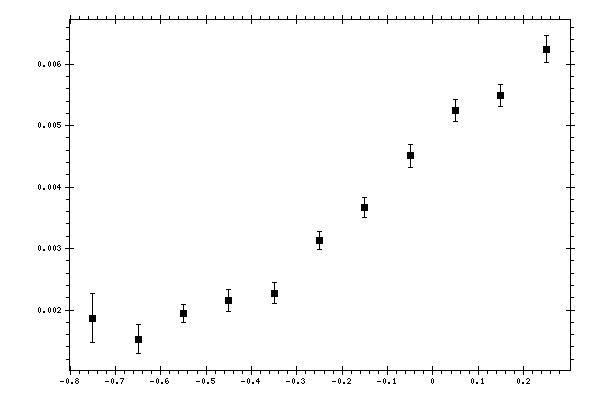

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0.0018655 | 0.000399569 | 0.000297686 |
| -0.65 | 0.00152709 | 0.000229017 | 0.000263872 |
| -0.55 | 0.00194403 | 0.00015123 | 0.000272045 |
| -0.45 | 0.0021538 | 0.000175956 | 0.000341231 |
| -0.35 | 0.00226973 | 0.000171771 | 0.00033487 |
| -0.25 | 0.0031296 | 0.000150993 | 0.00043591 |
| -0.15 | 0.00367418 | 0.00016268 | 0.0005145 |
| -0.05 | 0.00450804 | 0.000184168 | 0.000649758 |
| 0.05 | 0.00524525 | 0.000183723 | 0.000770392 |
| 0.15 | 0.00548865 | 0.000175458 | 0.000778786 |
| 0.25 | 0.00624268 | 0.000219525 | 0.000872853 |
