Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 2.8 GeV2 |
|---|---|
| W : | 1.73 GeV |
| Ps: | 390 MeV |
|

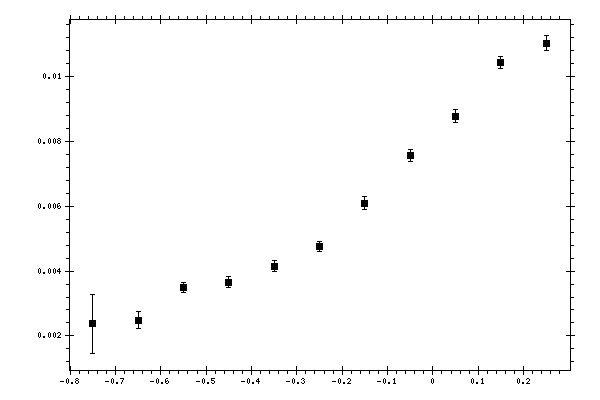

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0.00237746 | 0.000907904 | 0.000464163 |
| -0.65 | 0.00248366 | 0.000269103 | 0.000391322 |
| -0.55 | 0.00348714 | 0.000152337 | 0.000443004 |
| -0.45 | 0.00365784 | 0.000177236 | 0.000504481 |
| -0.35 | 0.00414591 | 0.000166914 | 0.00057897 |
| -0.25 | 0.00474571 | 0.000153087 | 0.000620362 |
| -0.15 | 0.00609952 | 0.000187293 | 0.000786808 |
| -0.05 | 0.00756957 | 0.000195092 | 0.000974439 |
| 0.05 | 0.0087747 | 0.000201493 | 0.00117727 |
| 0.15 | 0.0104323 | 0.000184743 | 0.00138364 |
| 0.25 | 0.0110322 | 0.000222815 | 0.0014818 |
