Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 1.8 GeV2 |
|---|---|
| W : | 1.5 GeV |
| Ps: | 460 MeV |
|

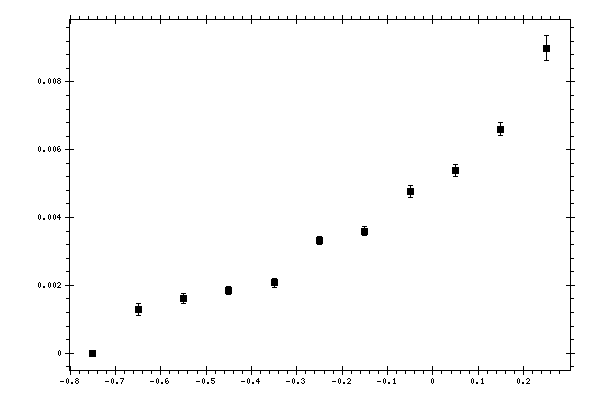

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0 | 0 | 0.000105521 |
| -0.65 | 0.00129501 | 0.000177122 | 0.000287515 |
| -0.55 | 0.00161147 | 0.00015566 | 0.000241843 |
| -0.45 | 0.00185756 | 0.000117931 | 0.000252173 |
| -0.35 | 0.00207038 | 0.000126647 | 0.000294823 |
| -0.25 | 0.0033206 | 0.000114565 | 0.000446962 |
| -0.15 | 0.00359968 | 0.000124742 | 0.00053699 |
| -0.05 | 0.00476747 | 0.000178982 | 0.000697737 |
| 0.05 | 0.00538276 | 0.000175687 | 0.000772473 |
| 0.15 | 0.00661031 | 0.000194239 | 0.000985107 |
| 0.25 | 0.00899407 | 0.000363172 | 0.00135653 |
