Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 2.8 GeV2 |
|---|---|
| W : | 1.73 GeV |
| Ps: | 460 MeV |
|

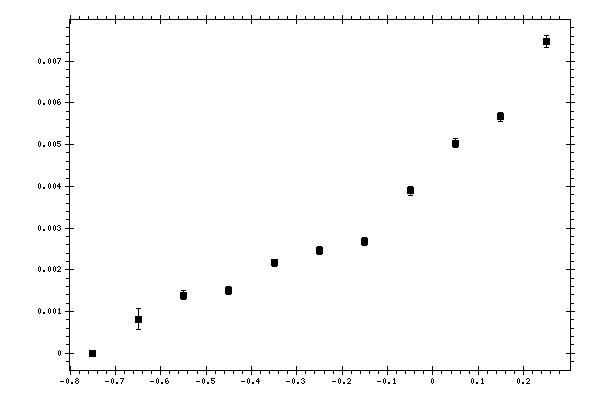

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0 | 0 | 9.0875e-05 |
| -0.65 | 0.000813974 | 0.000245283 | 0.000188652 |
| -0.55 | 0.00139242 | 0.000110474 | 0.000212875 |
| -0.45 | 0.00150561 | 8.87301e-05 | 0.000213117 |
| -0.35 | 0.00216212 | 7.72269e-05 | 0.00028102 |
| -0.25 | 0.00246376 | 8.73507e-05 | 0.000317117 |
| -0.15 | 0.00267074 | 9.08889e-05 | 0.000387013 |
| -0.05 | 0.00389063 | 0.000100816 | 0.000493751 |
| 0.05 | 0.00503522 | 0.00011447 | 0.00069416 |
| 0.15 | 0.00566643 | 0.000107289 | 0.00076882 |
| 0.25 | 0.00746743 | 0.000141808 | 0.00101718 |
