Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 1.8 GeV2 |
|---|---|
| W : | 2.02 GeV |
| Ps: | 560 MeV |
|

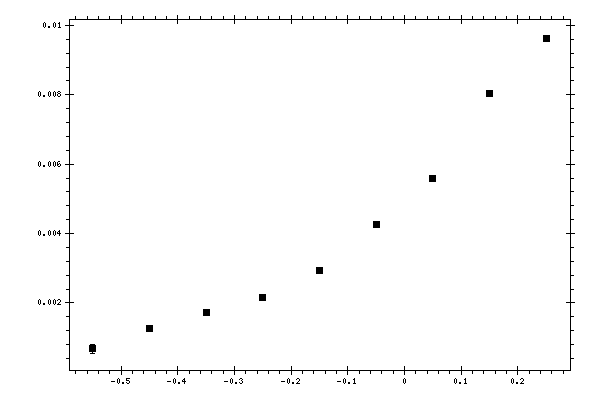

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.55 | 0.000673382 | 0.000122406 | 0.000106375 |
| -0.45 | 0.00124832 | 4.6243e-05 | 0.00017524 |
| -0.35 | 0.00173446 | 3.02634e-05 | 0.000232218 |
| -0.25 | 0.00215799 | 3.08052e-05 | 0.00027917 |
| -0.15 | 0.00293127 | 2.76714e-05 | 0.000508048 |
| -0.05 | 0.00425676 | 4.27451e-05 | 0.000692992 |
| 0.05 | 0.00557537 | 5.07298e-05 | 0.000806899 |
| 0.15 | 0.00805257 | 5.37264e-05 | 0.000971428 |
| 0.25 | 0.00962461 | 7.58423e-05 | 0.001162 |
