Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 2.8 GeV2 |
|---|---|
| W : | 1.5 GeV |
| Ps: | 560 MeV |
|

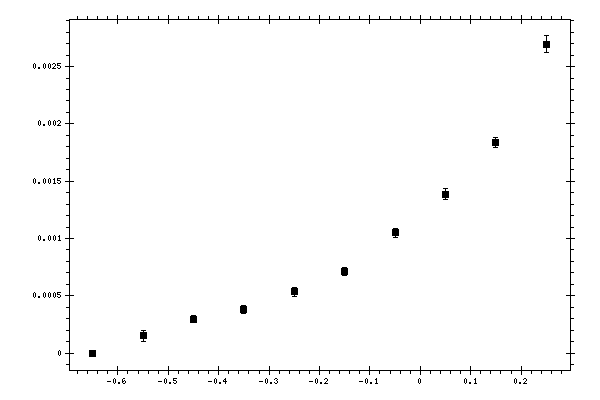

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.65 | 0 | 0 | 2.87033e-05 |
| -0.55 | 0.000151306 | 4.91896e-05 | 2.34607e-05 |
| -0.45 | 0.000297331 | 3.42988e-05 | 4.19814e-05 |
| -0.35 | 0.000379069 | 3.35904e-05 | 5.50146e-05 |
| -0.25 | 0.000534113 | 3.86018e-05 | 7.68345e-05 |
| -0.15 | 0.000712799 | 3.45903e-05 | 0.000131344 |
| -0.05 | 0.00104815 | 4.16518e-05 | 0.000182744 |
| 0.05 | 0.00138695 | 4.5488e-05 | 0.000218534 |
| 0.15 | 0.00183865 | 4.59681e-05 | 0.00025895 |
| 0.25 | 0.00269372 | 7.43535e-05 | 0.000366402 |
