Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.35 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 300 MeV |
|

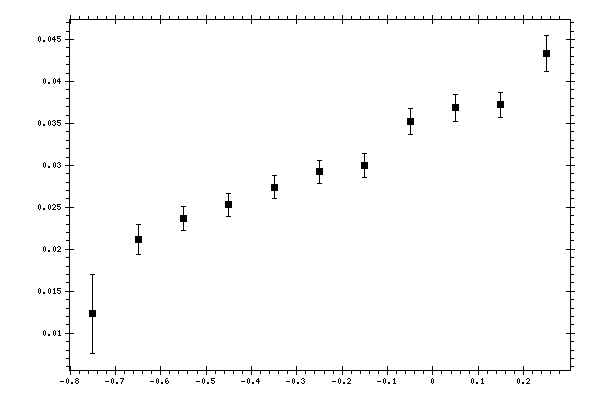

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Stat. error,
dimensionless |
Syst. error,
dimensionless |
|---|---|---|---|
| -0.75 | 0.0123391 | 0.00470085 | 0.00504699 |
| -0.65 | 0.0211955 | 0.00182331 | 0.00309402 |
| -0.55 | 0.0236717 | 0.00144404 | 0.00390705 |
| -0.45 | 0.0252883 | 0.00139875 | 0.0043575 |
| -0.35 | 0.0274033 | 0.00133658 | 0.00469359 |
| -0.25 | 0.0292384 | 0.00133451 | 0.00483502 |
| -0.15 | 0.0300147 | 0.00143067 | 0.00425554 |
| -0.05 | 0.0352152 | 0.00153877 | 0.00745341 |
| 0.05 | 0.0368808 | 0.00161604 | 0.00765774 |
| 0.15 | 0.0372005 | 0.00153557 | 0.00557031 |
| 0.25 | 0.0433259 | 0.00210763 | 0.0092258 |
