Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.45 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 300 MeV |
|

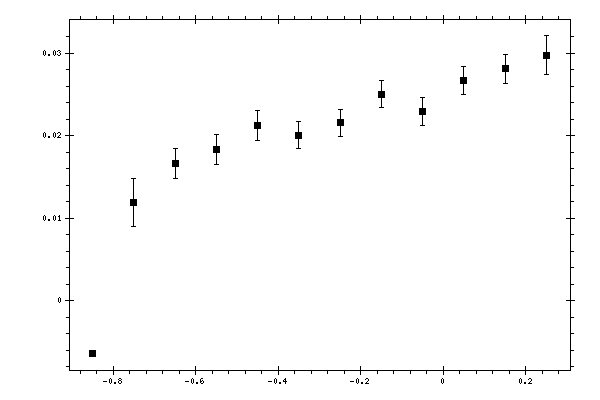

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.85 | -0.006346 | 0 | 0.0183701 |
| -0.75 | 0.0119209 | 0.00287755 | 0.00239058 |
| -0.65 | 0.01665 | 0.00180623 | 0.00254658 |
| -0.55 | 0.0183208 | 0.00176744 | 0.00312626 |
| -0.45 | 0.0212294 | 0.00179505 | 0.00445074 |
| -0.35 | 0.0200302 | 0.00163199 | 0.00303106 |
| -0.25 | 0.021552 | 0.00161087 | 0.00334152 |
| -0.15 | 0.0249942 | 0.00162255 | 0.00438674 |
| -0.05 | 0.0229177 | 0.00165328 | 0.00315791 |
| 0.05 | 0.0266577 | 0.00172299 | 0.00409656 |
| 0.15 | 0.0280808 | 0.00174931 | 0.00402038 |
| 0.25 | 0.0297563 | 0.00232184 | 0.00408242 |
