Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
Q2 : | 0.45 GeV2 |
---|---|
W : | 2.4 GeV |
Ps: | 340 MeV |

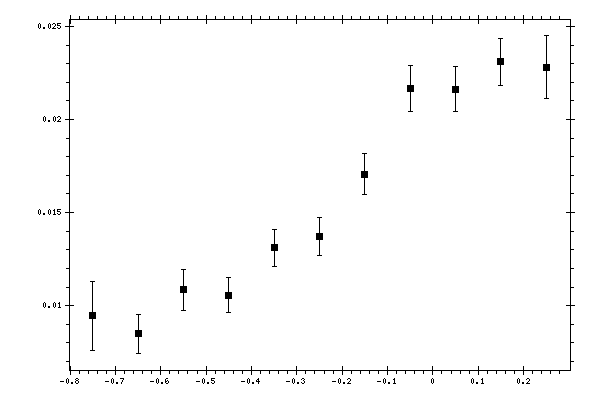

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
---|---|---|---|
-0.75 | 0.00944785 | 0.00186902 | 0.00245841 |
-0.65 | 0.00847855 | 0.00103084 | 0.00136994 |
-0.55 | 0.0108513 | 0.00109296 | 0.00221708 |
-0.45 | 0.0105684 | 0.000922162 | 0.00132138 |
-0.35 | 0.0131041 | 0.00100987 | 0.00196478 |
-0.25 | 0.0137309 | 0.00102159 | 0.00182509 |
-0.15 | 0.0170685 | 0.00111467 | 0.00259495 |
-0.05 | 0.0216544 | 0.00124618 | 0.00449767 |
0.05 | 0.0216288 | 0.00122503 | 0.00278125 |
0.15 | 0.0230891 | 0.00124503 | 0.00323649 |
0.25 | 0.0228082 | 0.00168401 | 0.00457119 |
