Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.55 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 340 MeV |
|

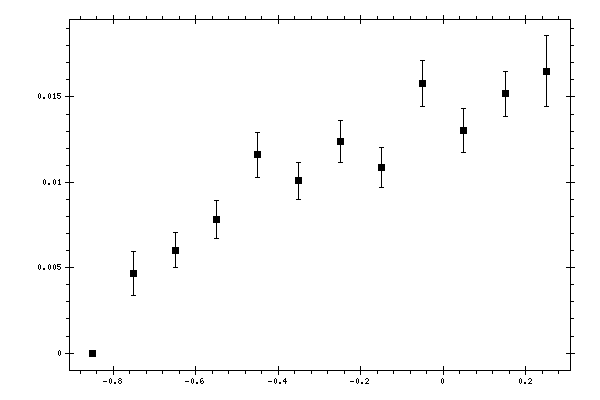

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.85 | 0 | 0 | 0.000624231 |
| -0.75 | 0.00466019 | 0.00128125 | 0.000672309 |
| -0.65 | 0.0060328 | 0.00103476 | 0.00103802 |
| -0.55 | 0.00781619 | 0.00113331 | 0.00182024 |
| -0.45 | 0.0116189 | 0.00131195 | 0.0043482 |
| -0.35 | 0.0100823 | 0.00110361 | 0.00196658 |
| -0.25 | 0.012391 | 0.00120124 | 0.00323856 |
| -0.15 | 0.0108791 | 0.00118749 | 0.00157589 |
| -0.05 | 0.0157884 | 0.00136671 | 0.00378725 |
| 0.05 | 0.0130446 | 0.00129459 | 0.00230897 |
| 0.15 | 0.0151898 | 0.0013179 | 0.00313501 |
| 0.25 | 0.0165063 | 0.00206833 | 0.00345946 |
