Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.25 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 340 MeV |
|
Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.

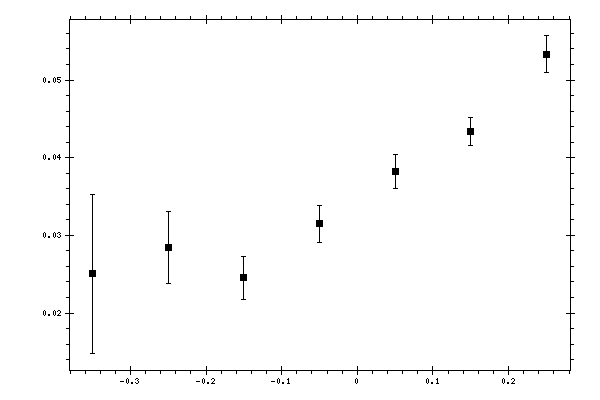

Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Stat. error,
dimensionless |
|---|---|---|
| -0.35 | 0.0250655 | 0.010233 |
| -0.25 | 0.0284029 | 0.00463042 |
| -0.15 | 0.0245593 | 0.00277847 |
| -0.05 | 0.0314696 | 0.00241689 |
| 0.05 | 0.0382067 | 0.00213917 |
| 0.15 | 0.0433206 | 0.00180381 |
| 0.25 | 0.0533476 | 0.00233553 |
