Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.35 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 390 MeV |
|

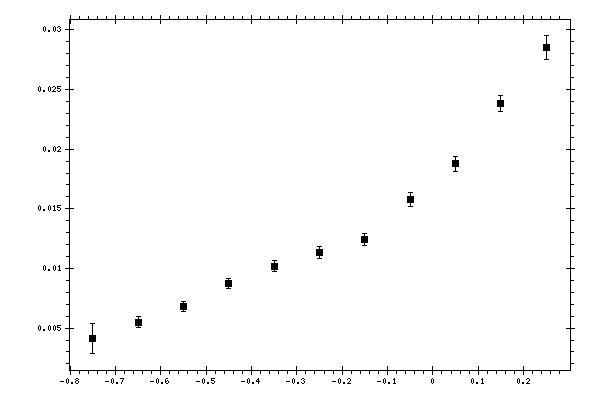

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0.00414487 | 0.00124045 | 0.00075767 |
| -0.65 | 0.00550707 | 0.000473504 | 0.000699481 |
| -0.55 | 0.00684513 | 0.00041388 | 0.00102892 |
| -0.45 | 0.00873349 | 0.00042245 | 0.0016519 |
| -0.35 | 0.0102042 | 0.000423509 | 0.00173513 |
| -0.25 | 0.0113234 | 0.000481059 | 0.00148422 |
| -0.15 | 0.0123896 | 0.000502209 | 0.00172269 |
| -0.05 | 0.0157903 | 0.000595401 | 0.0020482 |
| 0.05 | 0.0187638 | 0.000633787 | 0.00231325 |
| 0.15 | 0.0238523 | 0.000684231 | 0.00319221 |
| 0.25 | 0.0285215 | 0.000971661 | 0.00442192 |
