Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.55 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 390 MeV |
|

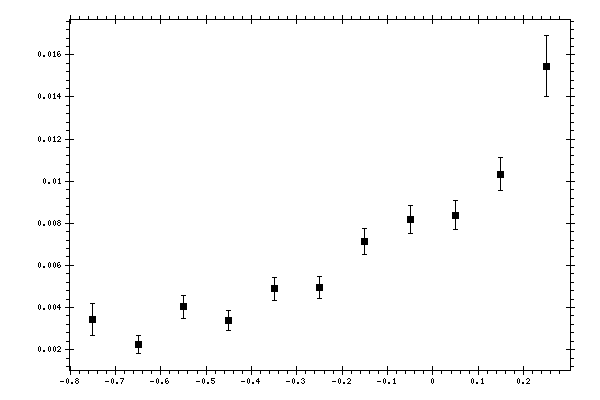

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0.00343746 | 0.000768064 | 0.00133705 |
| -0.65 | 0.00225906 | 0.000426359 | 0.000440735 |
| -0.55 | 0.00402713 | 0.000538483 | 0.000931711 |
| -0.45 | 0.00338629 | 0.000466664 | 0.000622955 |
| -0.35 | 0.00488667 | 0.000541432 | 0.00107684 |
| -0.25 | 0.00493267 | 0.000522795 | 0.000816366 |
| -0.15 | 0.00711695 | 0.00062194 | 0.00155111 |
| -0.05 | 0.00817013 | 0.000663757 | 0.00140306 |
| 0.05 | 0.00838753 | 0.000683777 | 0.00139131 |
| 0.15 | 0.0103356 | 0.000780293 | 0.00163775 |
| 0.25 | 0.0154666 | 0.00143739 | 0.00378197 |
