Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.45 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 390 MeV |
|

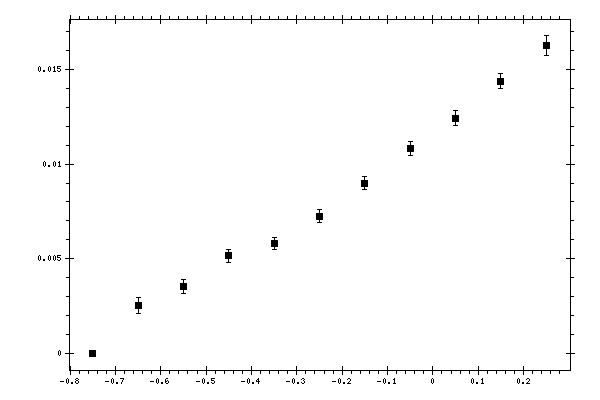

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0 | 0 | 0.00229581 |
| -0.65 | 0.00250679 | 0.000421152 | 0.00112435 |
| -0.55 | 0.00353022 | 0.000353795 | 0.000674061 |
| -0.45 | 0.00514541 | 0.000352199 | 0.000842741 |
| -0.35 | 0.0057887 | 0.000307242 | 0.000730517 |
| -0.25 | 0.00725156 | 0.000339948 | 0.000960437 |
| -0.15 | 0.00899301 | 0.00035393 | 0.00119051 |
| -0.05 | 0.0108127 | 0.000373481 | 0.00152716 |
| 0.05 | 0.0124402 | 0.000388666 | 0.00158581 |
| 0.15 | 0.0143948 | 0.000384969 | 0.00178274 |
| 0.25 | 0.0162798 | 0.00050794 | 0.00201272 |
