Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.55 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 390 MeV |
|

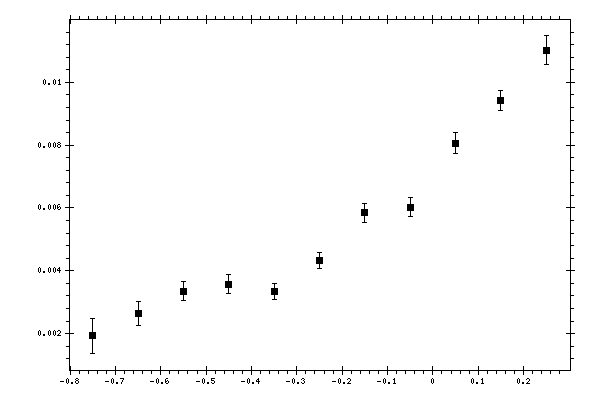

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0.00193142 | 0.000551212 | 0.000484061 |
| -0.65 | 0.00264908 | 0.000375625 | 0.000413786 |
| -0.55 | 0.00335417 | 0.000309582 | 0.000560058 |
| -0.45 | 0.00357349 | 0.000301946 | 0.000582463 |
| -0.35 | 0.003341 | 0.000248624 | 0.000836901 |
| -0.25 | 0.00432477 | 0.000261199 | 0.000896105 |
| -0.15 | 0.00584805 | 0.00029928 | 0.000755568 |
| -0.05 | 0.00602984 | 0.000292986 | 0.00129818 |
| 0.05 | 0.00806078 | 0.000327757 | 0.00116366 |
| 0.15 | 0.0094237 | 0.000329131 | 0.0014612 |
| 0.25 | 0.0110228 | 0.000455451 | 0.00168002 |
