Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.25 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 460 MeV |
|

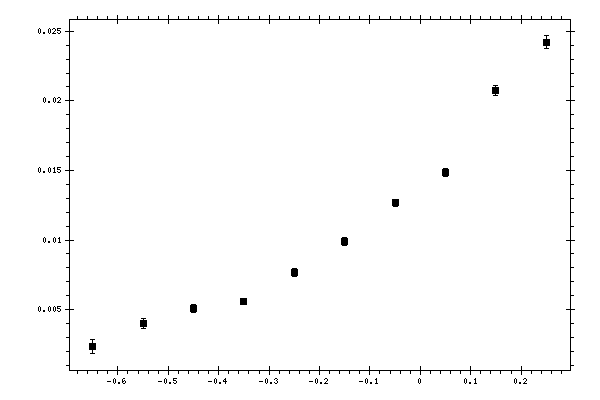

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Stat. error,
dimensionless |
Syst. error,
dimensionless |
|---|---|---|---|
| -0.65 | 0.00236224 | 0.000484352 | 0.000852443 |
| -0.55 | 0.00402982 | 0.000356163 | 0.000884933 |
| -0.45 | 0.00509906 | 0.000282218 | 0.00121649 |
| -0.35 | 0.00558945 | 0.000238163 | 0.000843928 |
| -0.25 | 0.00766311 | 0.000259554 | 0.00145809 |
| -0.15 | 0.00988969 | 0.000267291 | 0.00181507 |
| -0.05 | 0.0126656 | 0.00027387 | 0.00229502 |
| 0.05 | 0.0148795 | 0.000290024 | 0.00209601 |
| 0.15 | 0.0207408 | 0.000333567 | 0.00408682 |
| 0.25 | 0.0242024 | 0.000467416 | 0.00441763 |
