Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.45 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 460 MeV |
|

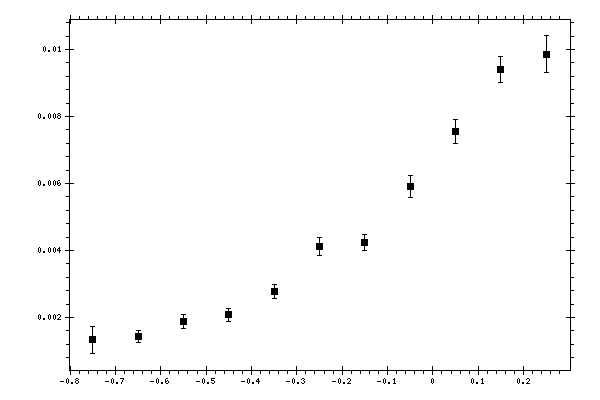

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Stat. error,
dimensionless |
Syst. error,
dimensionless |
|---|---|---|---|
| -0.75 | 0.00133208 | 0.000394878 | 0.000259821 |
| -0.65 | 0.00143407 | 0.000193457 | 0.000297617 |
| -0.55 | 0.00187968 | 0.000199277 | 0.000244766 |
| -0.45 | 0.00207994 | 0.000202614 | 0.000284026 |
| -0.35 | 0.00277424 | 0.000213291 | 0.000359364 |
| -0.25 | 0.00411798 | 0.000261322 | 0.000746129 |
| -0.15 | 0.00423918 | 0.000252036 | 0.000686148 |
| -0.05 | 0.00591637 | 0.000325162 | 0.000836998 |
| 0.05 | 0.00756147 | 0.000351599 | 0.00100289 |
| 0.15 | 0.0094084 | 0.000386594 | 0.00128343 |
| 0.25 | 0.00986674 | 0.000541656 | 0.00218852 |
