Measurement E15M14

You are not logged in.

Experiment: E99-105, 2002

Spokespersons: M. Gar�on, M. Guidal, E. S. Smith

Measurement comment: Virtual photon polarization parameter ε = 0.65. Errors include statistics and point-to-point sytematics, added in quadrature.

Publication:

L. Morand, D. Dore, M. Gar�on, M. Guidal, J.-M. Laget, S. Morrow, F. Sabatie, E. Smith, and CLAS collaboration Deeply virtual and exclusive electroproduction of omega mesons // hep-ex/0504057

Quantity measured: dσ/dt, mcbn/GeV2
Differential cross section over Mandelstam variable t.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: ω p, polarization: none

Q² :	2.35 GeV²
W :	2.21 GeV
x_b :	0.37
ε :	0.65

Observable quantity measured (Y axis): dσ/dt, mcbn/GeV2

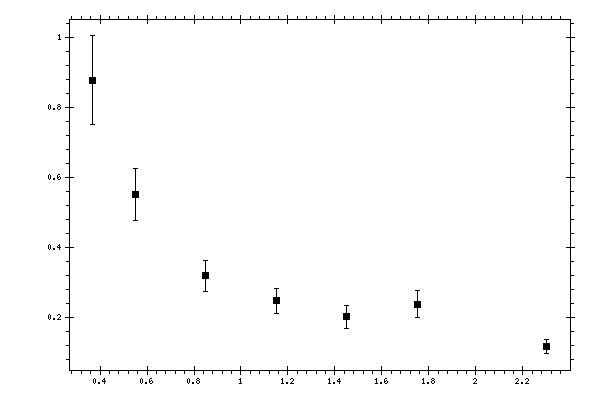

Plot measurement data

Parameter (X axis): -t, GeV2

Click here to get data in text file, delimited with tabs.

Measured data:

-t, GeV2	dσ/dt, mcbn/GeV2	Data errors, mcbn/GeV2
0.3685321	0.8762307	0.127241
0.55	0.5499303	0.07386767
0.85	0.3179232	0.04447123
1.15	0.2466163	0.03632919
1.45	0.2011558	0.03217538
1.75	0.2374154	0.0379024
2.3	0.1168585	0.01937707
