Measurement E15M76

You are not logged in.

Experiment: E99-105, 2002

Spokespersons: M. Garçon, M. Guidal, E. S. Smith

Measurement comment: Omega spin matrix elements from method of moments, background unsubtracted. Data were integrated up to t' =  t0 - t < 0.5 GeV2. The abscissa (arguments n = 1 - 15) corresponds to the following list of matrix elements: r0004, Re r1004, r1-104, r001, r111, Re r101, r1-11, Im r102, Im r1-12, r005, r115, Re r105, r1-15, Im r106, Im r1-16. Virtual photon polarization parameter ε = 0.706. Mandelstam variable –t = 0.611 GeV2. Errors include systematics, added in quadrature.

Publication:

Quantity measured: r, dimensionless
Spin matrix element.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: ω p, polarization: none

Q2 : 2.028 GeV2
W : 2.171 GeV
xb : 0.348
ε : 0.706

Observable quantity measured (Y axis): r, dimensionless

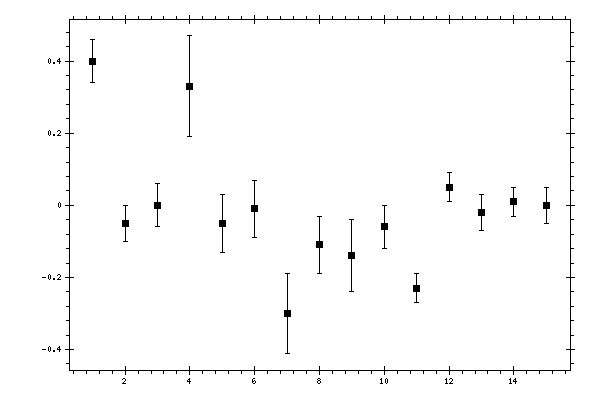

Plot measurement data

Parameter (X axis): n, number of argument from the list

Click here to get data in text file, delimited with tabs.

Measured data:

n,
number of argument from the list
r,
dimensionless
Data errors,
dimensionless
1 0.4 0.06
2 -0.05 0.05
3 0 0.06
4 0.33 0.14
5 -0.05 0.08
6 -0.01 0.08
7 -0.3 0.11
8 -0.11 0.08
9 -0.14 0.1
10 -0.06 0.06
11 -0.23 0.04
12 0.05 0.04
13 -0.02 0.05
14 0.01 0.04
15 0 0.05
