Parameter (X axis): -t, GeV2
You are not logged in.
Experiment: E99-105, 2002
Spokespersons: M. Garçon, M. Guidal, E. S. Smith
Measurement comment: Virtual photon polarization parameter ε = 0.72. Errors include statistics and point-to-point sytematics, added in quadrature.
Publication:
Quantity measured: dσ/dt, mcbn/GeV2
Differential cross section over Mandelstam variable t.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: ω p, polarization: none
| Q2 : | 1.785 GeV2 |
|---|---|
| W : | 2.21 GeV |
| xb : | 0.308 |
| ε : | 0.72 |
|

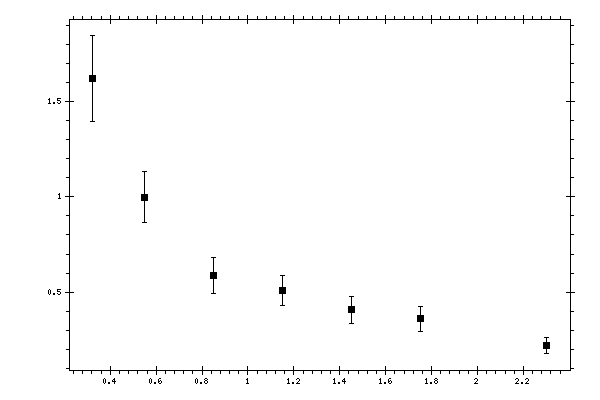

Observable quantity measured (Y axis): dσ/dt, mcbn/GeV2
Parameter (X axis): -t, GeV2 |
Click here to get data in text file, delimited with tabs.
Measured data:
|
-t,
GeV2 |
dσ/dt,
mcbn/GeV2 |
Data errors,
mcbn/GeV2 |
|---|---|---|
| 0.3232035 | 1.621644 | 0.2247376 |
| 0.55 | 0.9985728 | 0.1347291 |
| 0.85 | 0.5877599 | 0.09341597 |
| 1.15 | 0.5079855 | 0.07732006 |
| 1.45 | 0.4065763 | 0.07198392 |
| 1.75 | 0.3598678 | 0.066403 |
| 2.3 | 0.220989 | 0.04193124 |
