Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 1.3651 GeV2 |
|---|---|
| xb : | 0.1763 |
| -t: | 0.1346 |
|

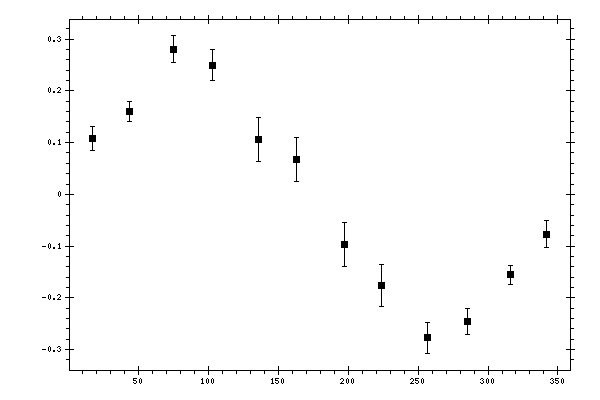

Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 17.3932 | 0.1082 | 0.0227 |
| 43.4416 | 0.1601 | 0.0195 |
| 75.3442 | 0.2806 | 0.0259 |
| 103.1776 | 0.2495 | 0.0302 |
| 136.2464 | 0.1064 | 0.0421 |
| 162.9244 | 0.0681 | 0.0428 |
| 197.44 | -0.0966 | 0.0429 |
| 223.8131 | -0.1754 | 0.0406 |
| 257.0253 | -0.2777 | 0.0293 |
| 285.3543 | -0.2455 | 0.0257 |
| 315.8994 | -0.1556 | 0.0185 |
| 341.6751 | -0.077 | 0.0257 |
